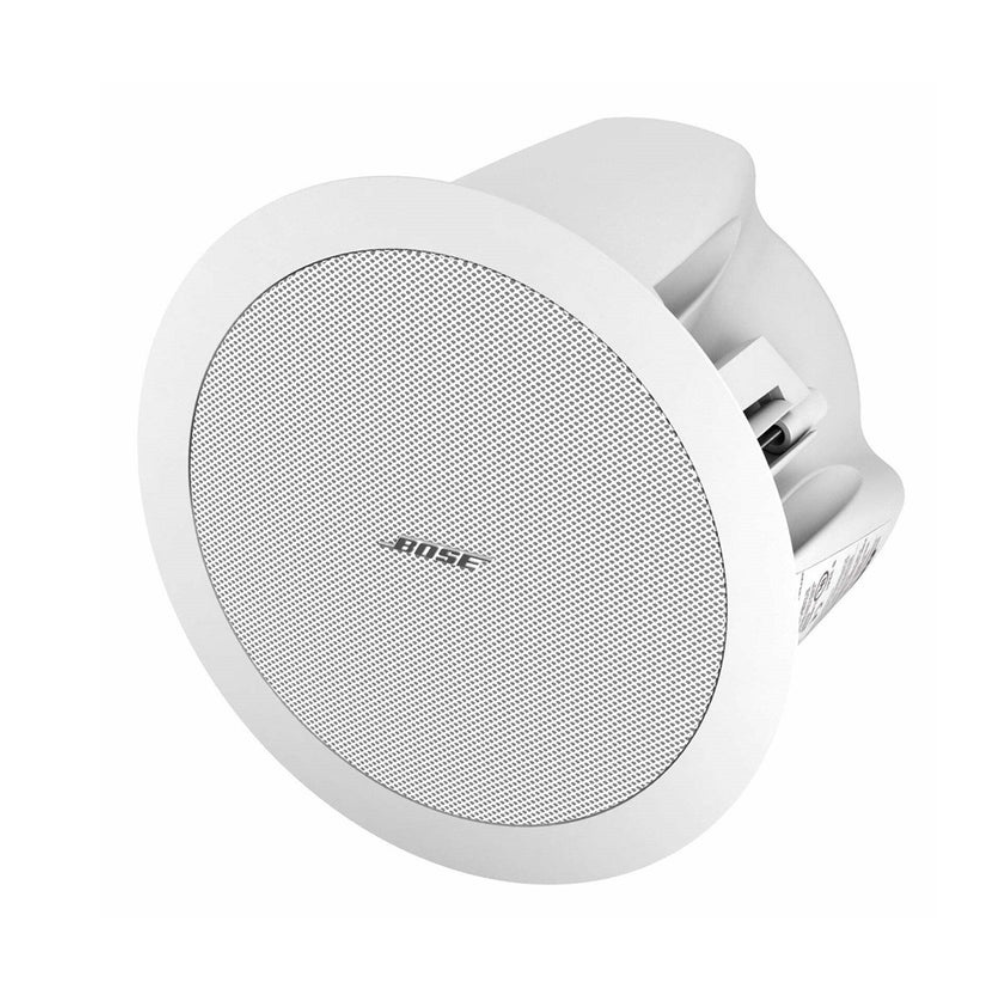

– Full-range loudspeaker with a single 4.5″ (114 mm) driver in a ported enclosure to deliver a 125° conical coverage pattern and clear, intelligible music and speech reproduction for flush-ceiling or pendant-mount applications
– Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap setting from underneath the loudspeaker grille
– Shortcan design allows installation in shallower ceilings with minimum depth of 6.4″ (163 mm)
– Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality
– Supported by a suite of accessories, including ceiling-mount bracket, adjustable tile bridge, pendant-mount kit and square grille
– Frequency Response (+/-3 dB): 80 Hz – 17 kHz
– Frequency Range (-10 dB): 70 Hz – 19 kHz
– Nominal Dispersion: 125° conical
– Long-Term Power Handling: 40 W (160 W peak)
– Sensitivity (SPL / 1 W @ 1 m): 87 dB SPL
– Maximum SPL @ 1 m: 103 dB SPL (109 dB SPL peak)
– Nominal Impedance: 8 Ω (transformer bypassed)
